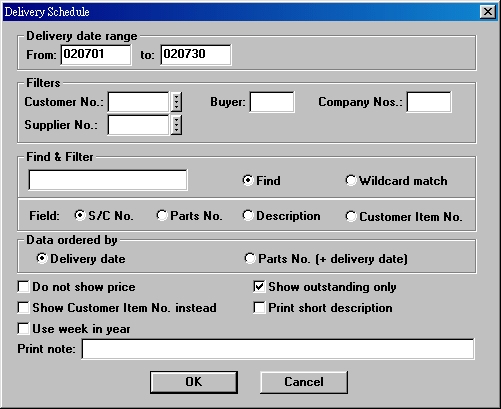

交貨日期表列印查詢. (Delivery Schedule)
尚未下採購單之資料列印查詢. (Order Placement Status Report)
ET521 P/O Control Reports
訂貨單資料查詢
Contents
00. Overview
|

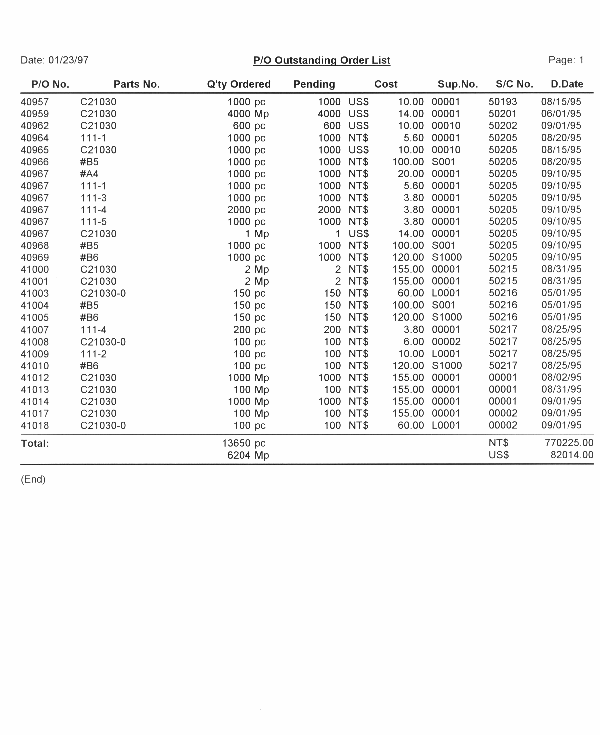

待交貨訂單資料列印查詢. (Outstanding Order List) 接單出貨明細資料列印查詢. (Transaction Data Listing) 交貨日期表列印查詢. (Delivery Schedule) 尚未下採購單之資料列印查詢. (Order Placement Status Report)
|
|

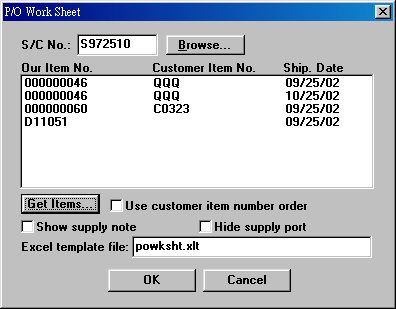

P/O Work Sheet
|

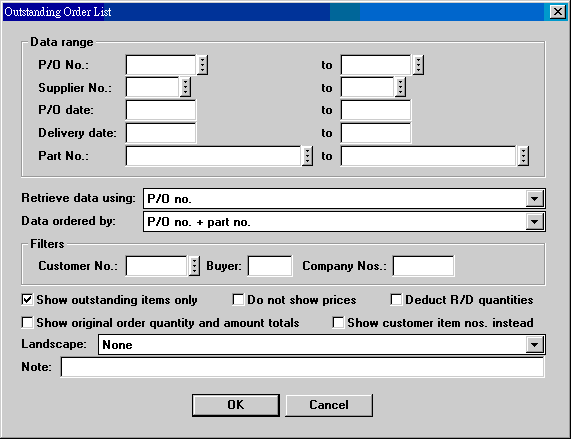

| Data range | 依 retrieve data using 的選擇, 設定適當的資料範圍. 任何設定, 都會影響查詢結果. |
| Retrieve data using | 與 data range 適當配合, 會加速查詢. 資料擷取方式有: (1) P/O No. (2) Supplier No. + P/O No. (3) P/O Date + P/O No. |
| Data ordered by | 最終報表有多種排列方式: (1) P/O No. + Part No. (2) Supplier No. + P/O No. (3) P/O Date + P/O No. (4) Delivery Date + P/O No. |
| Filters | 設定篩選項目. Customer No. 只對有 S/C 之訂貨單有效. |
| Show outstanding items only | |
| Do not show prices | |
| Deduct R/D quantities | 有些 items 已做 R/D, 但尚未做 delivery data input 沖銷 (PODET). 勾選本選項, 會讓 outstanding 數量更正確. |
| Show original order quantity | 加總. |
| Show customer item nos. instead | 用 customer item no. 取代 our item no. |
| Landscape | 橫式報表: (1) None (2) Short description (3) Customer no. + customer order no. (4) Customer no. + customer order no. + short description. 第 (4) 項選擇會使用較小的字型. |
| Note |

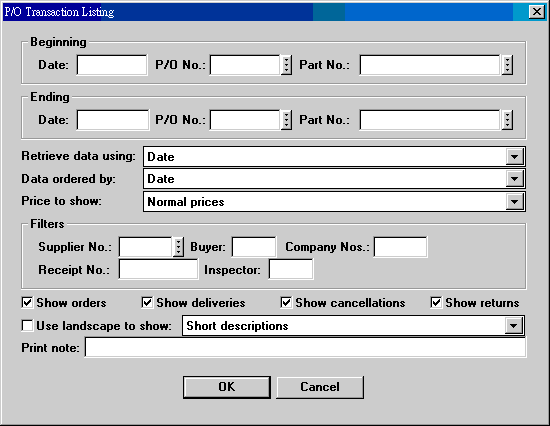

| Beginning...Ending | 要查詢資料的範圍. 任何欄位之設定, 都會影響查詢結果. |
| Retrieve data using | 資料擷取方式: (1) Date (2) P/O No. + Part No. 與上述資料範圍適當配合, 會加速查詢. |
| Data ordered by | 報表資料排列方式: (1) Date (2) P/O No. + Part No. |
| Price to show | (1) Normal (2) 2nd prices (3) 3rd prices. |
| Filters | |
| Show orders | |
| Show deliveries | |
| Show cancellations | |
| Show returns | |
| Use landscape to show | 橫式報表增加欄位選項: (1) Short description (2) S/C nos. (3) S/C nos. + invoice nos. + dates. |
| Print note |

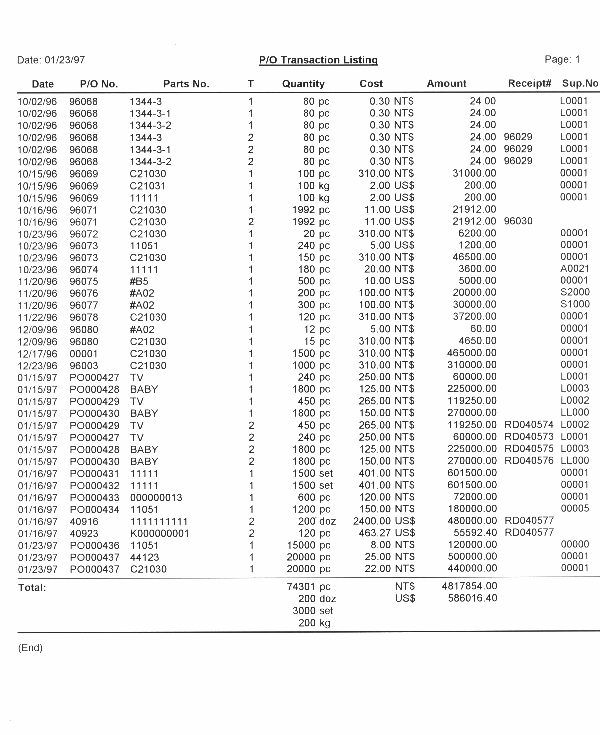

在報表的 T 欄位, 1 代表訂貨, 2 代表交貨, 3 代表取銷, 4 代表退貨.

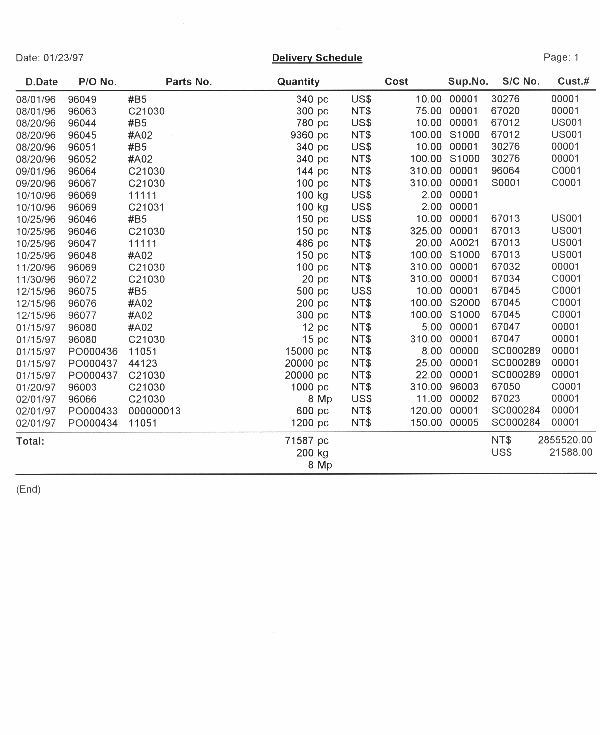

根據採購單預計交貨日期查詢 P/O 上之未收貨資料, 若要查詢所有 P/O 上完整之資料, 不要選擇 "Show outstanding only".

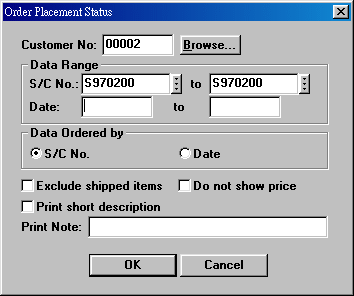

14. Order Placement Status Report
本節主要在查詢已接國外訂單卻尚未下之國內採購單之資料. 作業時, 可直接指明國外客戶及其 S/C 號碼.
印出之報表, 若 S/C 無對應之 P/O 資料, 表示未曾下國內採購單; 如非空白, 但餘額不為零, 則表示尚有單子未下完, 應再補下. 若不需列出 S/C 已出貨之資料, 請選擇 "Exclude shipped items".

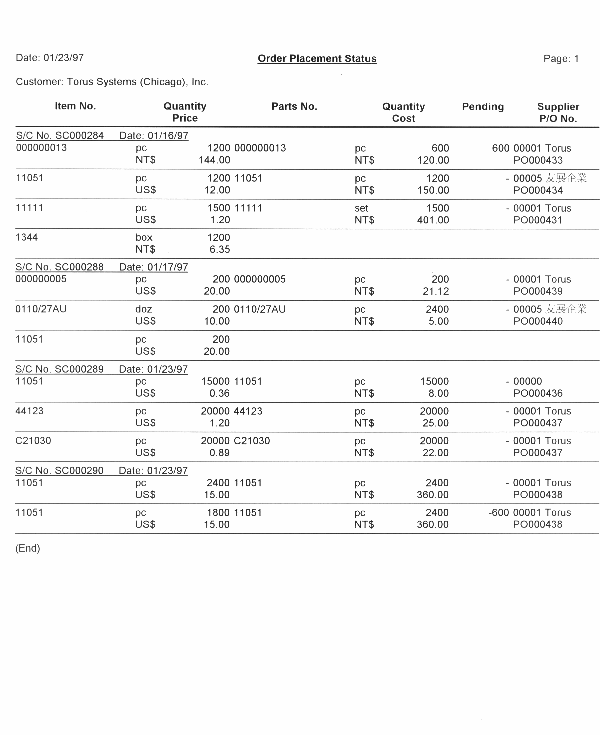

當你做好 S/C 但未下單前, 可先產生這份報表. 報表內容為 S/C 項目, 品名, 數量, 單價, 交期,
以及各產品之供應廠商和其報價.

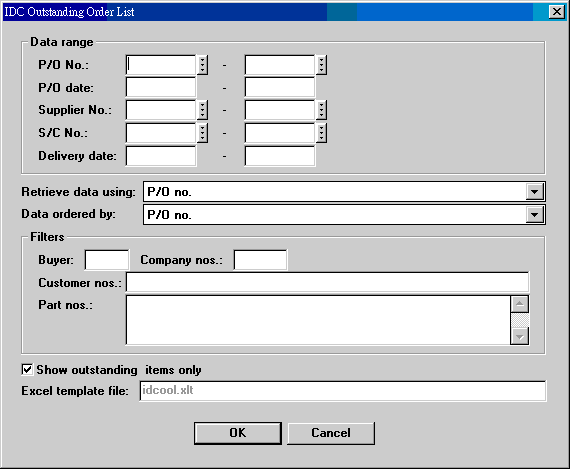

60. Custom-Made: IDC P/O Outstanding Order List
| Data range | Any combination of range settings is effective during retrieval of data. |
| Retrieve data using | Options: P/O no., P/O date + P/O no., Supplier no. + P/O no., S/C no. + P/O no., P/O delivery date. |
| Data ordered by | Options: P/O no., P/O date + P/O no., Supplier no. + P/O no., S/C no. + P/O no., P/O delivery date + P/O no., Part no. + delivery date + P/O no., S/C shipping date + P/O no., Invoice no. (1st available) + P/O no. |
| Filters | Company nos.: Use company number 1, 2, 3,
etc., or any combination like 13. Customer nos.: Enter customer nos. for whom you want outstanding order data. Separate numbers with commas. Part nos.: Enter part nos. for which you want outstanding order data. Separate numbers with commas. |
| Show outstanding items only | If unchecked, all P/O items will be shown, disregarding whether items have been delivered or not. |
| Excel template file | File must be available in data folder. |
| Date | Version | Downloads | Actions | Explanations |
|---|---|---|---|---|
| 2012-7-25 | SP3 Secured | et521zip.exe, etconvzp.exe. | Launch etconv.exe and execute 13. Delmas. | Transaction Data Listing: If invoice no. is not available from R/D, use invoice supplier data (invsup.dat) to try to get invoice no. In case of multiple invoices, the invoice with matched quantity is used. If no match found, the latest invoice is used. |
| 2008-10-9 | SP3 Secured | et521zip.exe. | Download. | Margin offsets for reports of landscape orientation. Refer to system codes ET521-OFFSETX and ET521-OFFSETY below. |
| Code | Field | Value | Explanation |
|---|---|---|---|
| ET521-LAYOUT-INSPRPT | 3 | 11 numbers | Column positions for
inspection report. Default: 0.0,0.7,1.4,2.1,3.3,4.8,5.8,6.6,7.4,8.2,10.0 |
| ET521-LAYOUT-LATEST | 3 | 11 numbers | Column positions for latest
purchase prices. Default: 0.0,1.5,2.5,3.2,3.9,5.1,6.1,7.1,8.5,10.2 |
| ET521-LAYOUT-ODRSTAT | 3 | 8 numbers | Column positions for order
status report. Default: 0.0,1.6,2.9,4.5,5.8,6.6,7.8,10.2 |
| ET521-LAYOUT-OUTSTAN | 3 | 12 numbers | Column positions for
outstanding order list. Default: 0.0,0.7,2.5,3.7,4.5,5.6,6.2,6.9,7.6,8.2,10.2,13.2 |
| ET521-LAYOUT-SCHED | 3 | 11 numbers | Column positions for
delivery schedule. Default: 0.0,0.8,1.6,3.1,4.4,5.7,6.3,7.1,7.7,10.2,10.2 |
| ET521-LAYOUT-SCHED2 | 3 | 11 numbers | Column positions for
delivery schedule with landscape 1. Default: 0.0,0.8,1.6,3.1,4.4,5.7,6.5,7.9,8.7,10.2,10.2 |
| ET521-LAYOUT-SCHED3 | 3 | 11 numbers | Column positions for
delivery schedule with landscape 2. Default: 0.0,0.8,1.6,3.1,4.4,5.7,6.3,7.1,7.7,9.2,13.2 |
| ET521-LAYOUT-SCHEDC1 | 3 | 13 numbers | Column positions for custom
delivery schedule I. Default: 0.0,0.595,2.125,2.72,3.91,4.59,5.61,6.29,7.31,7.90,8.5,9.35,10.37 |
| ET521-OFFSETX | 3 8 |
22222222... 33333333... |
To adjust left margin for
printing of portrait orientation. 1/10 of value used. To adjust left margin for printing of landscape orientation. Note: field 3 used if field 8 not available. |
| ET521-OFFSETY | 3 8 |
22222222... 33333333... |
To adjust top margin for
printing of portrait orientation. 1/10 of value used. To adjust top margin for printing of landscape orientation. Note: field 3 used if field 8 not available. |
| ET521-SCHEDULEC1 | 3 | 20 bytes | Program key for Custom Delivery Schedule I. |
| LAYOUT-ET521-TRANS | 3 | 14 numbers | Column positions for
transaction data listing. Default: 0.0, 0.7, 1.6, 3.5, 3.7, 4.9, 5.5, 6.9, 7.8, 8.7, 9.6, 10.5, 11.2, 13.1 |
Last modified: July 2014
